W-IMU01
High-Performance Dual IMU & Magnetic Position Sensor

Based on high-frequency STM32F446 processor, equipped with dual IMU design, providing up to 1500Hz data update rate for exceptional precision and responsiveness in your applications.

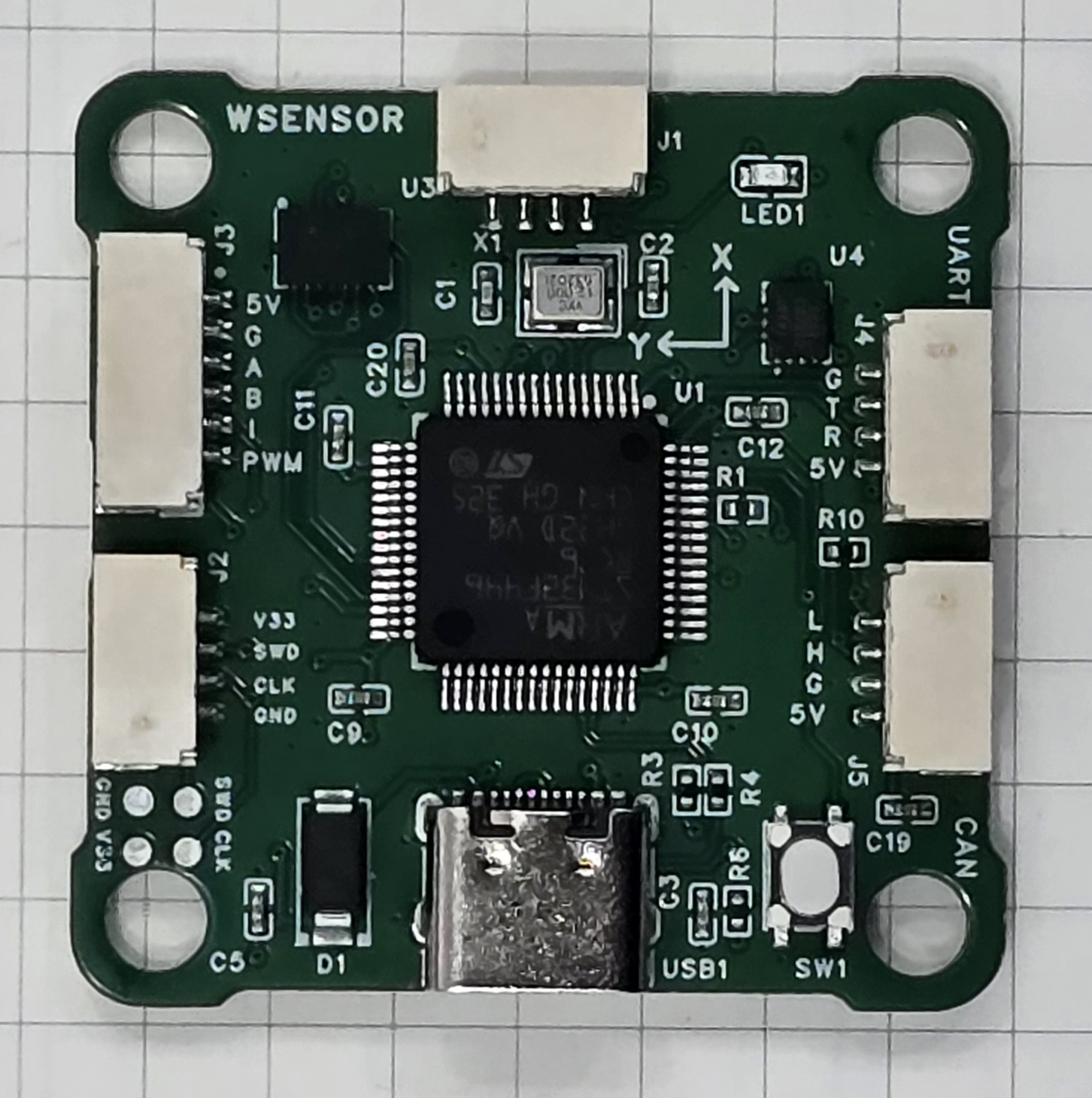

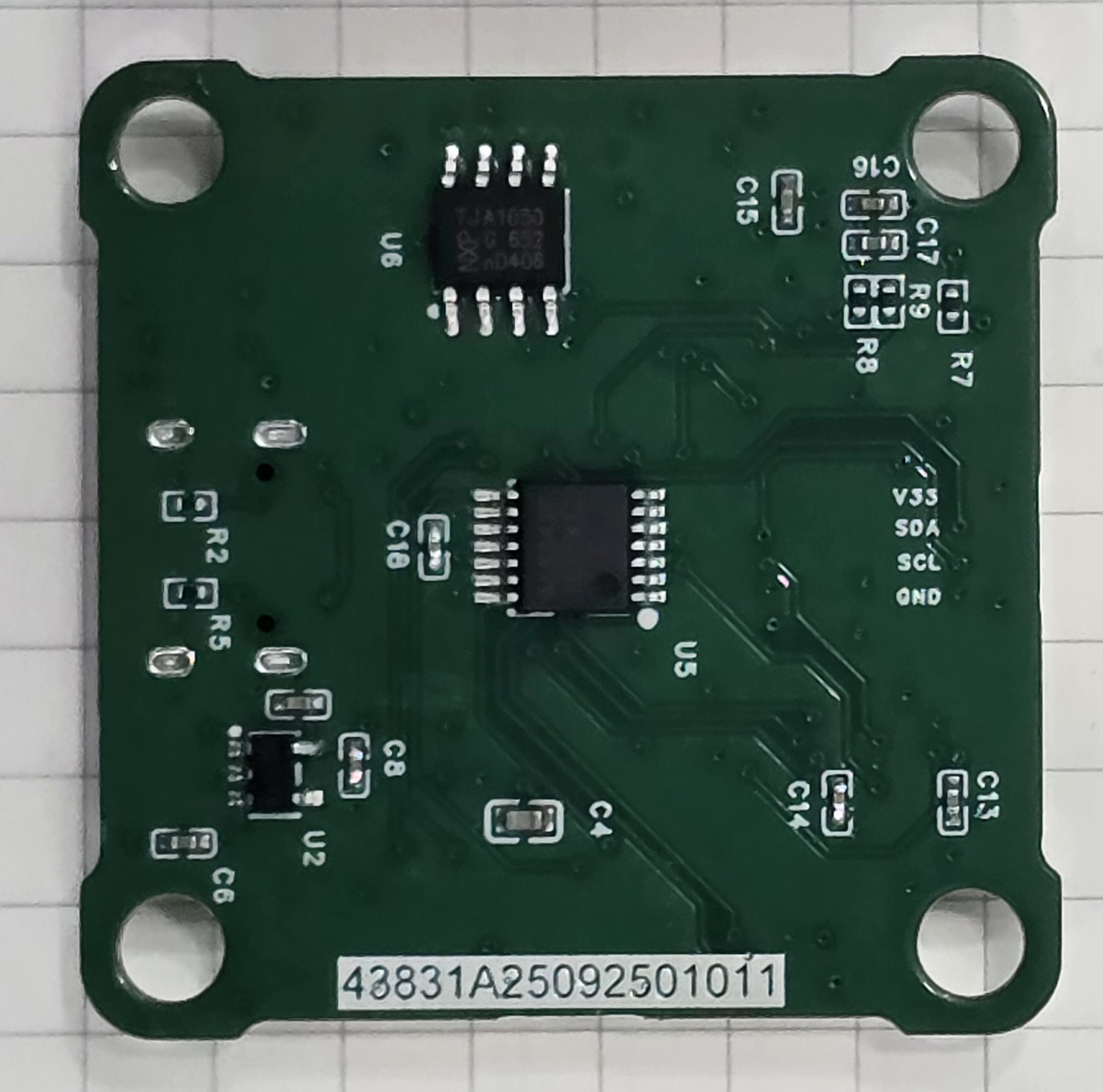

W-IMU01 Sensor W-IMU01 Sensor Other Side
1500Hz

High-Performance Processor

STM32F446

Dual IMU Design

High Precision Measurement

Product Features

The W-IMU01 sensor integrates advanced technology to provide you with precise and reliable motion sensing experience

High-Frequency Processor

Equipped with STM32F446 high-performance microcontroller, up to 180MHz, ensuring fast and accurate data processing while maintaining low power consumption.

Dual IMU Design

Featuring dual IMU sensor design, providing higher precision motion detection and attitude estimation through data fusion algorithms, effectively reducing errors.

High-Performance Position Sensor

Integrated with AS5047x high-performance position sensor, providing position measurement accuracy up to 0.1 degrees for precise angle and position detection.

1500Hz Update Rate

Up to 1500Hz data update rate, ensuring real-time capture of fast movements, providing precise attitude and motion data for high-dynamic applications.

Compact Design

Compact and small size design, easy to integrate into various devices while maintaining high performance and reliability.

Multiple Communication Interfaces

Supports multiple communication interfaces including USB, UART, CAN, providing flexible data transmission options to meet different application needs.

Technical Specifications

Learn about the detailed technical parameters and performance indicators of the W-IMU01 sensor

Processor

STM32F446, 180MHz

IMU Type

Dual 6-axis IMU (Accelerometer + Gyroscope)

Update Rate

Up to 1500Hz

Acceleration Range

±2g, ±4g, ±8g, ±16g selectable

Angular Velocity Range

±250°/s, ±500°/s, ±1000°/s, ±2000°/s selectable

Communication Interfaces

USB, UART, CAN

Supply Voltage

3.3V ±5%

Operating Temperature

-40°C to +85°C

Interface Protocol Support

ROS MQTT CAN Modbus USB

Performance Advantages

Leading advantages of W-IMU01 sensor in data update rate, accuracy and stability

Product Multi-angle Display

W-IMU01 Sensor Front View

W-IMU01 Front View

W-IMU01 Sensor Side View

W-IMU01 Side View

1500Hz

Data Update Rate

3-5 times faster than ordinary IMU sensors, capturing fast movements more accurately

±0.02°

Angle Measurement Accuracy

Dual IMU fusion algorithm provides higher measurement stability and accuracy

0.67ms

Response Time

Low-latency data processing, real-time response to various dynamic changes

Applications

The W-IMU01 sensor is widely used in various fields, providing precise motion sensing capabilities for various intelligent devices

Drones & Robotics

Provides high-precision attitude control and stable flight capabilities for drones and robots, ensuring reliable operation in complex environments.

Virtual Reality/Augmented Reality

Enables precise head tracking and gesture recognition in VR/AR devices, providing smooth and natural immersive experiences.

Industrial Automation

Provides precise motion control and position sensing in industrial robots and automation equipment, improving production efficiency and precision.

Smart Wearables

Provides precise motion monitoring and health data analysis functions for smart watches, fitness trackers, and other wearable devices.

Smart Vehicles

Provides vehicle attitude and motion state monitoring in autonomous driving and driver assistance systems, enhancing driving safety.

Motion Analysis & Health Monitoring

Used for athlete motion capture and analysis, providing precise motion data to optimize training effectiveness and prevent sports injuries.
